For the longest time I read on an old Kindle 4 (2011), but in 2022 I finally made the jump and got myself a Kindle Paperwhite 11th-generation (2021)—referred to as the PW5 in the community.

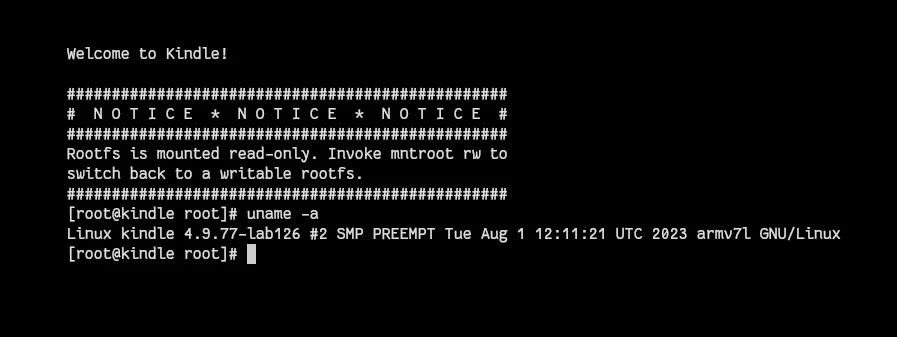

The hardware in these devices is quite capable; it even runs a full Linux system, heavily locked down as it is. This is not really a problem as long as you hold off on updates—easier said than done with the aggressive auto-update policy of these devices—and jailbreak it.

Overall I’m pretty happy with these new-generation devices, but one annoyance that remained was the lack of remote page-turning capabilities. In all this time Amazon—or more specifically its hardware division, Lab126—still hasn’t implemented this functionality. I’d like to cozy up in a blanket during the winter days without having to pull my hand out every minute just to tap the screen. Yes, I am lazy, but then again, programmers are famously so.

I have a cheap smart ring—Colmi R02—with an accelerometer that I bought on Aliexpress. So how hard could it be to hook it up to the Kindle and enable page-turns via hand gestures?

The rest of this article will focus on my journey reverse engineering the Bluetooth stack used in newer Kindles. Keep in mind that I’m not a C developer, nor do I know anything about the kernel, and I had likewise never opened Ghidra before I started on this project. What you’ll read here is based on my own assumptions, and may be mistaken at times.

The beginning

I managed to keep this Kindle Paperwhite mostly offline and out of the update cycle for months until I got lucky and a jailbreak—LanguageBreak—came out. Turns out there is a lot of tooling people have built over the years that still works, including SSH!

Most of this tooling is in various states of disrepair, but is still available on the Mobileread Kindle forums. I also found out there that, despite interest in using the Bluetooth hardware over the years, there had simply been no progress.

Resigned to doing it myself, I began digging into the Kindle’s internals. After all, it’s Linux—how hard could it be? I figured it would just be a matter of finding the BlueZ utilities and running a few commands; not that I knew how BlueZ works or how it integrates into Linux.

Kindles already use Bluetooth, which allows you to listen to TTS of your ebooks and Audible books, and during first setup, to skip entering your Wi-Fi and Amazon account credentials by pairing with your phone.

So first thing to do, look for files:

$ find . -regextype awk -regex ".*(bluetooth|bt).*"
### Many lines removed for brevity ###
/opt/zbluetooth
/opt/zbluetooth/bt_stack.conf.logon
/etc/upstart/acsbtfd.conf
/etc/upstart/asr_bt_reboot.conf
/etc/upstart/asr_bt_userstore.conf
/etc/upstart/btmanagerd.conf
/usr/bin/ace_bt_framework_client
/usr/bin/ace_bt_cli
/usr/bin/ace_bt_framework_server
/usr/bin/btmanagerd
/usr/bin/acsbtfd
/usr/bin/btd
/usr/bin/btconnectionhelper
/usr/bin/lipcd-scripts/lipc-events/btReauthenticated.sh
/usr/bin/lipcd-scripts/lipc-events/btReconfirmed.sh
/usr/share/webkit-1.0/pillow/javascripts/bt_wizard_dialog.js
/usr/lib/libacehal_bt.so
/usr/lib/libace_bt.so
/usr/lib/libace_bt_cli.so
/usr/lib/libbluetooth.so
/lib/modules/4.9.77-lab126/extra/wmt_cdev_bt.ko

From this I gathered that there was some proprietary tooling for interacting with the Bluetooth stack; although at this point I was still unsure what I was looking at. Some of you more experienced Linux developers may already have spotted that none of this seems to be the configuration or tooling you would expect in a BlueZ stack.

After examining these files, most turned out to be either configuration files or stripped binaries. Some were executable, but there was no obvious way to get a help print. But one did turn out to be quite interesting, ace_bt_cli.

At this time, I still didn’t understand how Bluetooth worked and couldn’t figure out what to do with these commands. So this just went nowhere for several months.

Getting involved with the community

While I was digging into the Kindle’s internals, I came across a Discord server for Kindle modding, and so I joined to see if anyone had cracked Bluetooth yet. There I met Clint and Scam, who were interested in the Bluetooth stack and helped me tremendously with reverse engineering and debugging. In fact, Clint has already built some Bluetooth applications and more.

Initially we focused on just establishing a Bluetooth Low Energy connection through the ace_bt_cli utility. To this end, I got myself a Raspberry Pi Pico 2W, a very capable microcontroller board with Bluetooth hardware, as well as strong C and Python support. Using this, I was able to adapt some examples to create my own Bluetooth LE GATT Server with a LED toggle Characteristic supporting read, write, and notifications.

A brief primer on Bluetooth

Before I continue, I realise it would be helpful to provide a brief introduction to Bluetooth and to some of the terminology that I will use for the rest of the article. If you are already familiar with Bluetooth, you can jump to the next section.

For a fuller introduction, one can read The Bluetooth Low Energy Primer from the actual Bluetooth Special Interest Group. Although this document is lengthy and highly technical, it also covers many other aspects of the Bluetooth standard that I won’t discuss here.

Types of Bluetooth

Generally, when we talk about Bluetooth, we’re referring to either Bluetooth Classic, the older mode—still very much in use—introduced in version 1.0; or Bluetooth Low Energy—abbreviated as BLE, LE, or Bluetooth LE—introduced in version 4.0. There are other modes, but they are irrelevant to this article, in which we will focus primarily on BLE.

Profile specifications (roles)

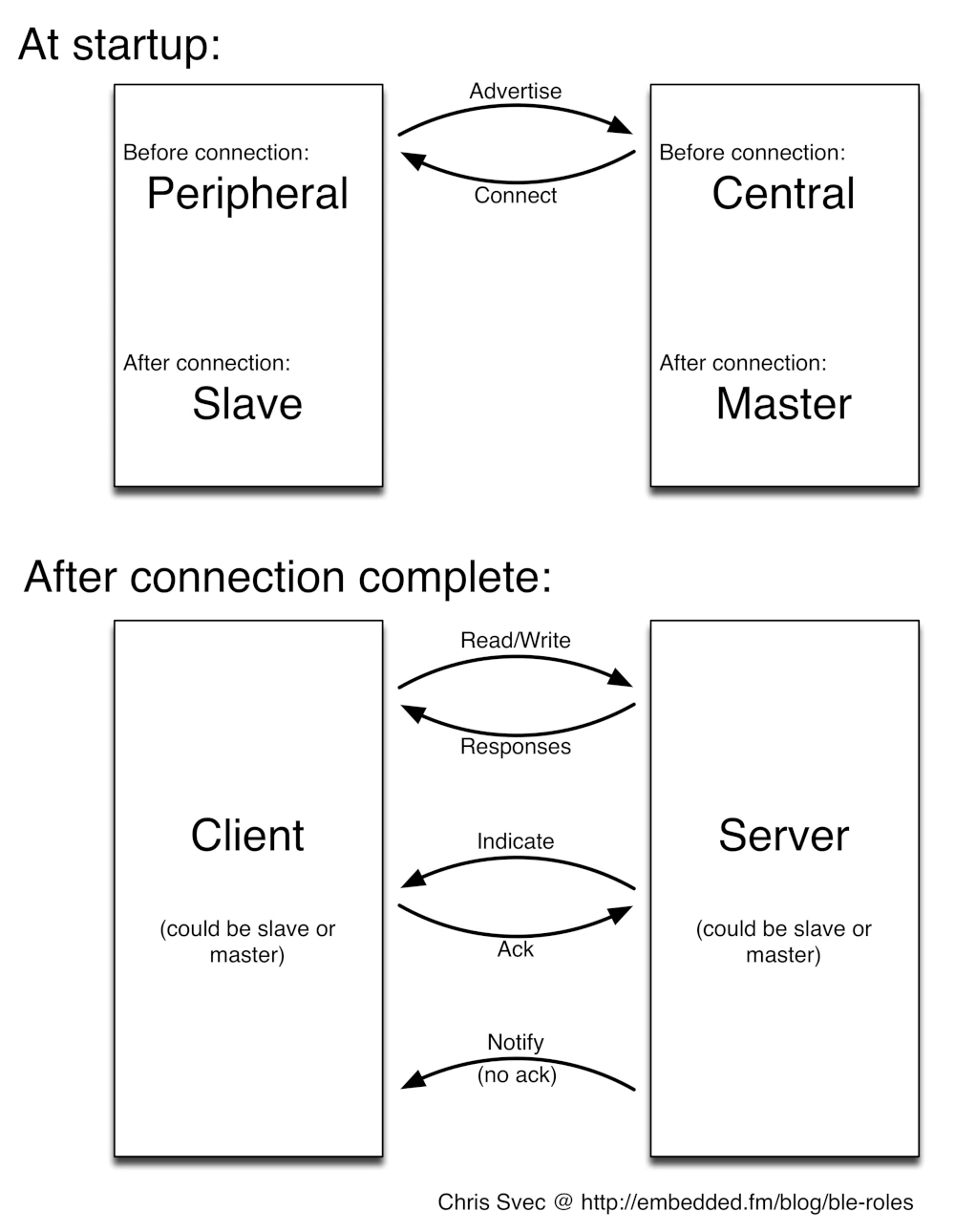

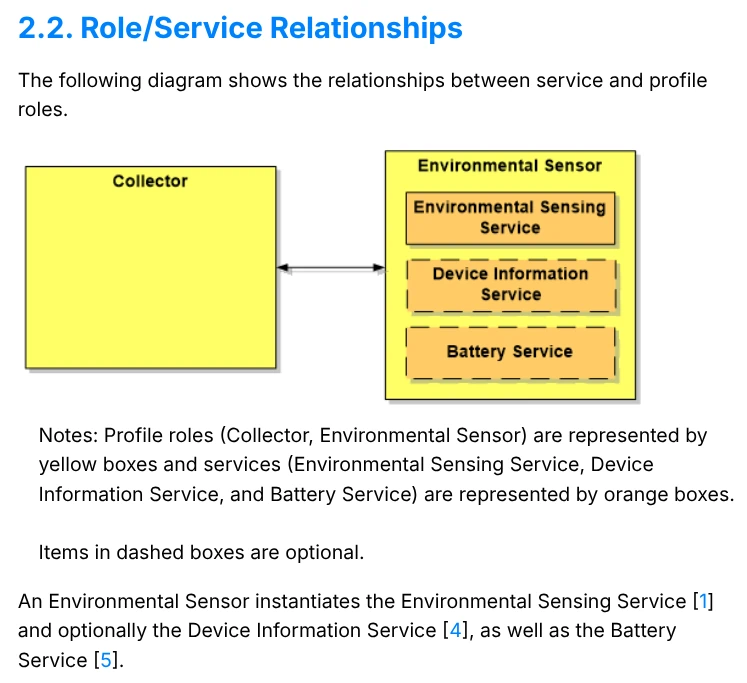

Bluetooth devices can assume different roles before and after establishing a connection. For the rest of this article, we will focus mainly on functionality available after a connection has been established.

Before a connection is established, a BLE device can send out advertisement packets that can be received by anyone. This is often used to have a one-to-many relationship. At this stage, the devices are in either a Peripheral or a Central role.

Once a connection has been established, one device will take on the role of Server and the other the role of Client. The device that assumes the Server role will be locked to that connection and unable to connect to other devices, while the Client can connect to multiple Servers.

If you have a background in web development, you might find this a little baffling: what kind of server only allows one connection? But consider the name: Low Energy. In the BLE world, we want our Server devices to be “dumb” and do as little work as possible—even hibernate—until they are actively queried. This enables battery-powered devices, such as sensors, to last for weeks.

The Client is therefore the “smart” device in this relationship, responsible for discovering the available Services on each Server, and deciding when to query for the data.

Service specifications

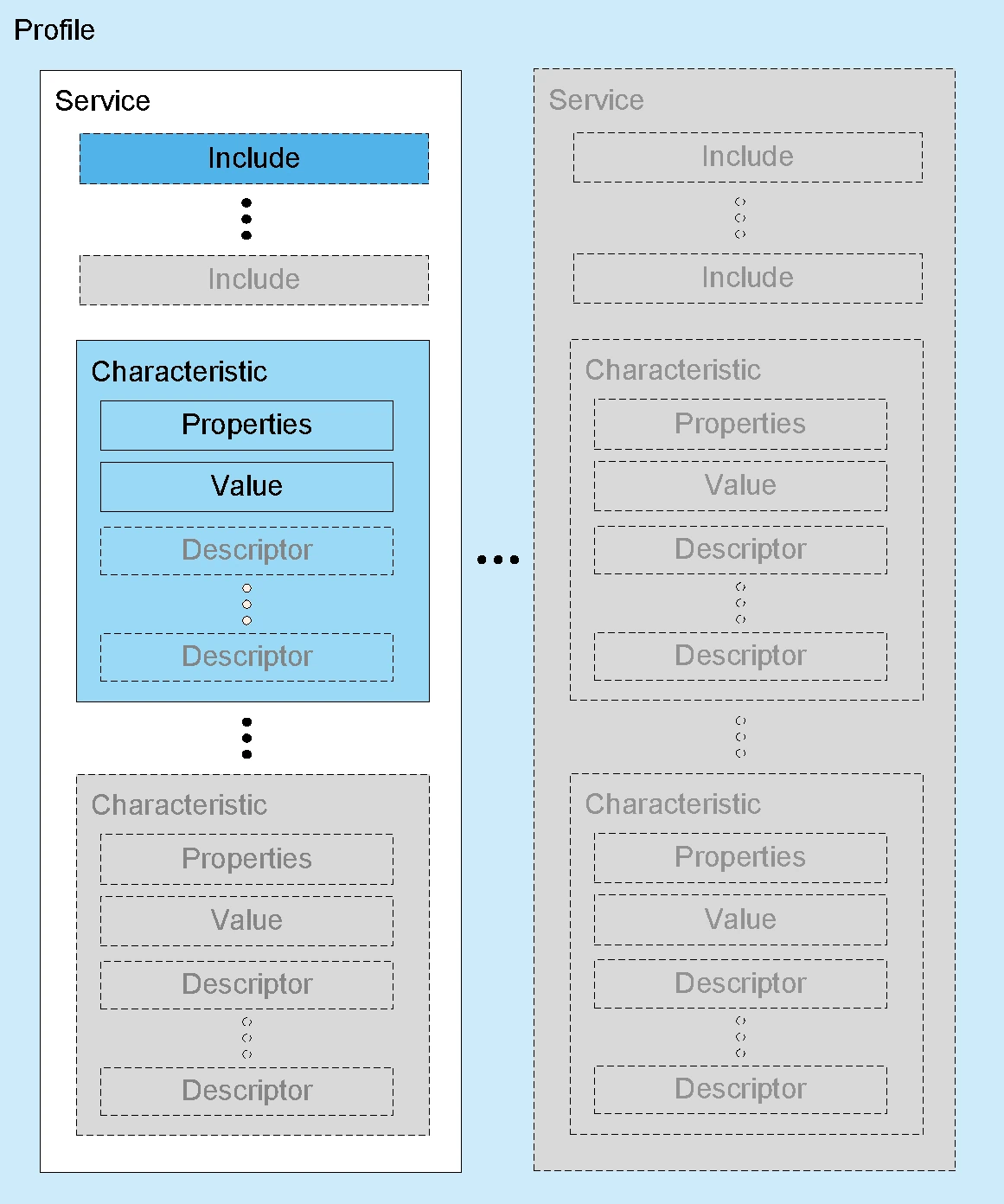

This is part of the GATT—Generic ATTribute Profile—specification. From The Bluetooth Low Energy Primer:

State data on servers resides in formally defined data items known as characteristics and descriptors. Characteristics and descriptors are grouped inside constructs known as services. Services provide a context within which to assign meaning and behaviors to the characteristics and descriptors that they contain.

If I were to use a REST API analogy, Services would be the APIs for interacting with a Server. The Characteristics and Descriptors a BLE product implements depend on the specific device; however, the Bluetooth specification introduces and defines many different generic Profiles. By selecting and implementing a generic Profile, manufacturers can provide a common interface while retaining custom functionality in the form of additional Characteristics and Services.

This effectively means is that if you have an external temperature sensor, it probably implements the Environmental Sensing Profile, which has a series of Services and Characteristics defined in the Bluetooth specification. This also means that, once you have implemented support for the Environmental Sensing Profile keeping with the specification, any device using this same Profile should work regardless of the manufacturer.

I would also note that Services are generally more of a construct rather than an actual interactive item. You don’t read or write Services, they are primarily organisational. They are used for discovery (listing the available Services in a BLE device), navigation (exploring Characteristics and Descriptors), and reference (grouping related Characteristics).

Services are further categorised as either Primary or Secondary. Primary Services are—and devices can have multiple Primary Services at once—discoverable on their own, while Secondary Services are not discoverable and must instead be included into a Primary Service to be accessible to clients. For the rest of this article we’ll focus on Primary Services.

Characteristics

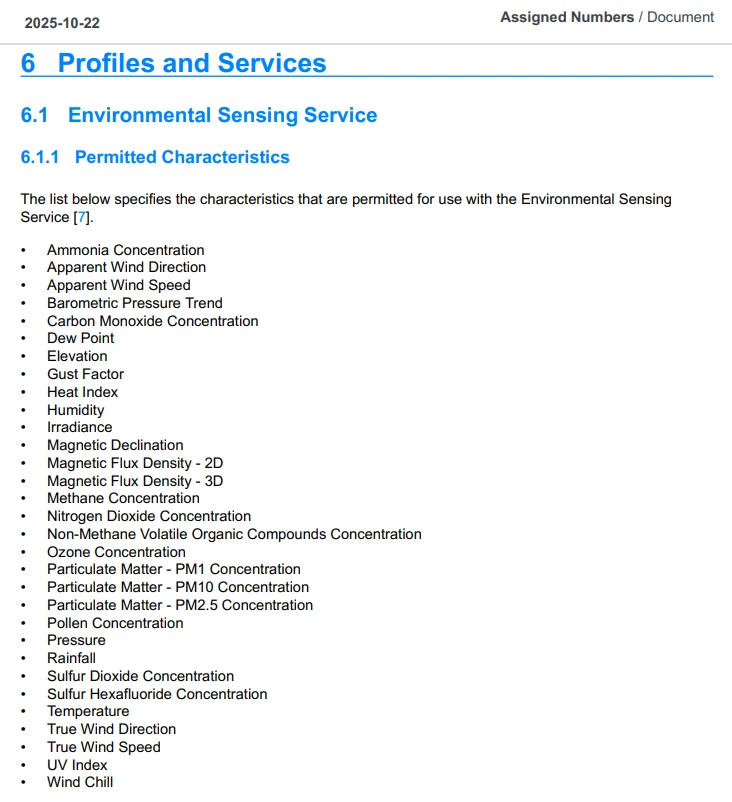

If Services are our APIs, then Characteristics are our endpoints. When using a generic Profile, the list of permitted Characteristics for use with a Service will be defined in the Assigned Numbers specification.

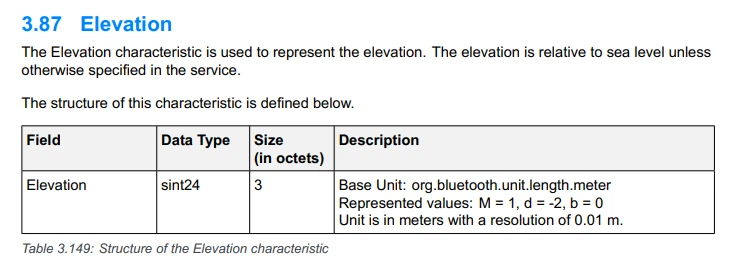

Additionally, Characteristics defined in the specification will use a fixed UUID. For example, if we search for the Elevation Characteristic in the document, we will find that its UUID is always 0x2A6C. If we then go to the GATT Specification Supplement, we can find the documentation for the structure of this Characteristic.

One final point about Characteristics is that the UUID in the specification does not refer to a specific instance. Instead, the same Characteristic can be part of multiple Services and Profiles, each with its own separate instance of the Elevation Data Characteristic, but all using the same UUID.

Descriptors

My REST API analogy breaks down here, but you can think of Descriptors as metadata around a Characteristic. This includes things like an optional name, the kind of operations it supports (e.g. read, write, notify, indicate), and sometimes even specifying the type of data and format expected for that Characteristic.

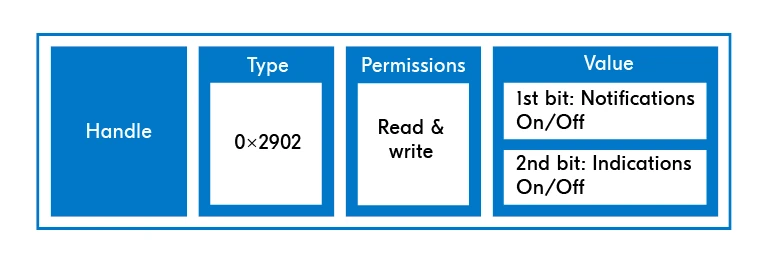

There are multiple descriptor types, but I will take this opportunity to introduce the CCCD (Client Characteristic Configuration Descriptor), as this will be relevant to one of the Bluetooth operations that will be introduced later—notify.

Like Characteristics, Descriptors also have fixed UUIDs that are defined in the Bluetooth specification. In the case of the CCCD, its UUID is 0x2902. The value field, which can be read and written, is two bits long. To enable notifications, the first bit should be set to 1; to enable indications, the second bit should be set to 1. To disable notifications or indications, the corresponding bit should be set to 0.

As a quick aside, and because I dislike footnotes, you may have noticed that I didn’t cover what happens when both the notification and indication bits are set. Turns out that this is undefined behaviour and depends on the Server implementation. This is neither defined nor covered in the specification.

Don’t worry about what notifications and indications are just yet, as these will be covered in the next section. The takeaway here is that a Characteristic can have zero or more Descriptors, which act as metadata for that Characteristic.

GATT operations

From the previous sections, you may already have deduced some of the operations that can be performed on a Characteristic, such as reading or writing. I won’t discuss them all, but I will explain the ones that are relevant to this article.

These operations can be classified as either Client-initiated, or Server-initiated. Unlike with REST APIs, the connection is bidirectional, meaning Servers can send data to Clients without a prior request.

For Client-initiated operations, i.e. where the Client in the connection requests data from the Server, we have: read, write—waits for an acknowledgement from the Server, and write without response—completes immediately.

For Server-initiated operations, we have: notify and indicate. These operations are used to subscribe to a given Characteristic and wait for the Server to periodically provide the Client with the value—the frequency is left to the Server implementation. The difference is that indications require an acknowledgement from the Client, and so only one indication will be sent at a time. Notifications, on the other hand, require no acknowledgement and multiple notifications can arrive at a time.

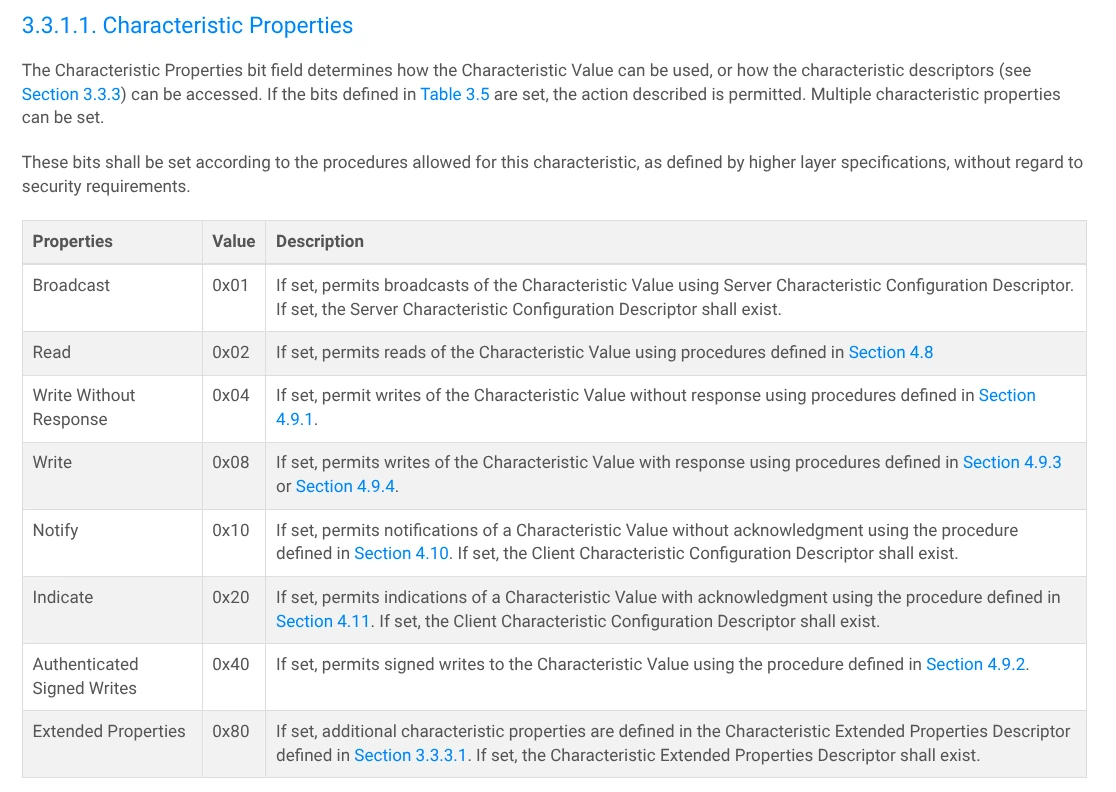

One final point to mention is that Characteristics define the operations they support via the Characteristic Properties field.

Putting it all together: A practical example

Although there is no single tool in Linux that provides a good diagram of a GATT Server, we can use the gatttool utility to query the Services, Characteristics, and Descriptors in a Server. Below is the output of the tool for my Pico Server.

$ gatttool -b CF:04:36:8E:BB:FC -I
[CF:04:36:8E:BB:FC][LE]> primary
attr handle: 0x0001, end grp handle: 0x0003 uuid: 00001800-0000-1000-8000-00805f9b34fb
attr handle: 0x0004, end grp handle: 0x0007 uuid: 0000180f-0000-1000-8000-00805f9b34fb
attr handle: 0x0008, end grp handle: 0x000a uuid: 00001801-0000-1000-8000-00805f9b34fb
attr handle: 0x000b, end grp handle: 0x0013 uuid: 0000ff10-1079-43e0-99be-1c0a675e86bf

[CF:04:36:8E:BB:FC][LE]> characteristics
handle: 0x0002, char properties: 0x02, char value handle: 0x0003, uuid: 00002a00-0000-1000-8000-00805f9b34fb
handle: 0x0005, char properties: 0x12, char value handle: 0x0006, uuid: 00002a19-0000-1000-8000-00805f9b34fb
handle: 0x0009, char properties: 0x02, char value handle: 0x000a, uuid: 00002b2a-0000-1000-8000-00805f9b34fb
handle: 0x000c, char properties: 0x1a, char value handle: 0x000d, uuid: 0000ff11-1079-43e0-99be-1c0a675e86bf
handle: 0x0010, char properties: 0x1a, char value handle: 0x0011, uuid: 0000ff12-1079-43e0-99be-1c0a675e86bf

[CF:04:36:8E:BB:FC][LE]> char-desc
handle: 0x0001, uuid: 00002800-0000-1000-8000-00805f9b34fb
handle: 0x0002, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x0003, uuid: 00002a00-0000-1000-8000-00805f9b34fb
handle: 0x0004, uuid: 00002800-0000-1000-8000-00805f9b34fb
handle: 0x0005, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x0006, uuid: 00002a19-0000-1000-8000-00805f9b34fb
handle: 0x0007, uuid: 00002902-0000-1000-8000-00805f9b34fb
handle: 0x0008, uuid: 00002800-0000-1000-8000-00805f9b34fb
handle: 0x0009, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x000a, uuid: 00002b2a-0000-1000-8000-00805f9b34fb
handle: 0x000b, uuid: 00002800-0000-1000-8000-00805f9b34fb
handle: 0x000c, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x000d, uuid: 0000ff11-1079-43e0-99be-1c0a675e86bf
handle: 0x000e, uuid: 00002902-0000-1000-8000-00805f9b34fb
handle: 0x000f, uuid: 00002901-0000-1000-8000-00805f9b34fb
handle: 0x0010, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x0011, uuid: 0000ff12-1079-43e0-99be-1c0a675e86bf
handle: 0x0012, uuid: 00002902-0000-1000-8000-00805f9b34fb
handle: 0x0013, uuid: 00002901-0000-1000-8000-00805f9b34fb

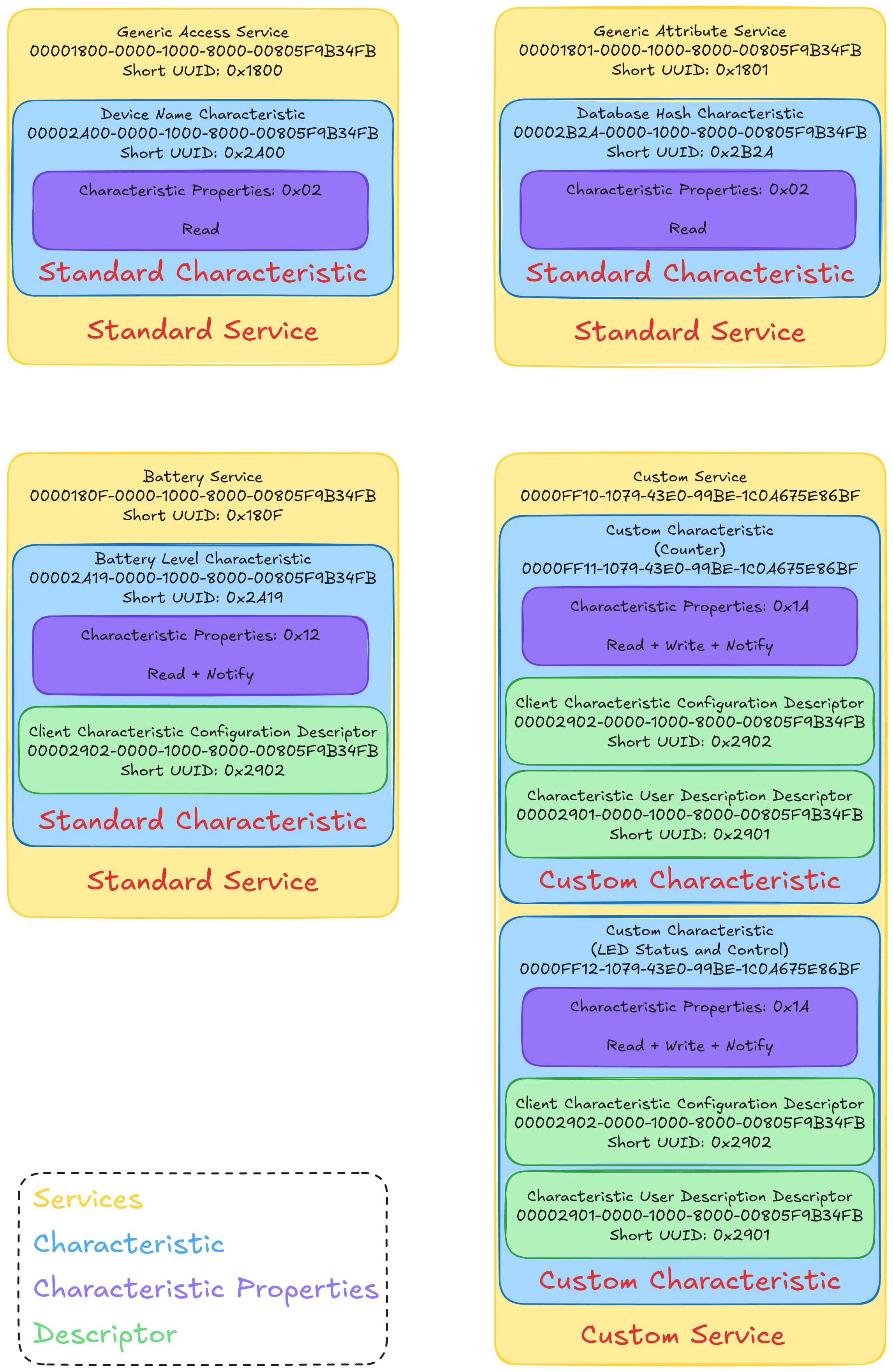

This is still difficult to understand, so I created a diagram to illustrate the entire GATT “database” of this Server:

Now, let’s take a closer look at this diagram. This server exposes four Primary Services: 0x1800, 0x1801, 0x180F, and 0000FF10-1079-43E0-99BE-1C0A675E86BF.

You may have noticed that some Services and Characteristics have short UUIDs with the same format: 0000****-0000-1000-8000-00805F9B34FB. This will be the case for those Services and Characteristics defined in the specification. If you implement these in your devices, you should use these UUIDs, and you can also refer to them by their 16-bit short equivalent. However, for any custom Services or Characteristics, you should generate and use new random 128-bit UUIDs.

Interestingly, Bluetooth SIG members can pay to have their custom Services included in the specification, allowing them to use the 16-bit format for their Services.

The Services 0x1800, 0x1801, 0x180F are part of the Assigned Numbers specification, where we can find that they are the Generic Access Service, the Generic Attribute Service, and the Battery Service respectively.

Having the Generic Access Service (0x1800) is mandatory, and is normally used to provide information such as the device name during Bluetooth scans. This is done through its Device Name Characteristic (0x2A00), which supports only reads—its Characteristics Properties is set to 0x02.

The next service, 0x1801, corresponds to the Generic Attribute Service. It contains a single readable Characteristic, 0x2B2A, which corresponds to the Database Hash Characteristic. This is used by Servers that might change their Services or Characteristics at runtime. Clients can use this Service to detect changes more quickly and easily. My Pico Server does not make use of this functionality, but BTstack populates it automatically nonetheless.

Then we have the Battery Service, with UUID 0x180F, and its Battery Level Characteristic, with UUID 0x2A19. Here we see our first Characteristic supporting notifications—bits 0x02 and 0x10 are set in its Characteristic Properties—meaning it will also have a Characteristic Client Configuration Descriptor (CCCD) with UUID 0x2902.

Finally, there is my custom Service with UUID 0000FF10-1079-43E0-99BE-1C0A675E86BF. As you can see, it has two Characteristics. Since these are custom Characteristics—notice the lack of short UUIDs—a client won’t know what they are for or even what they are called. To get around this, these Characteristics can define a Characteristic User Description Descriptor (0x2901), where the string name for the Characteristic can be queried. In this Service, I have then the Counter and LED Status and Control Characteristics. Both have the Characteristic Properties field set to 0x1A, meaning they support read, write, and notify (0x02 + 0x08 + 0x10).

And with this, we can return to the story of reverse engineering the Kindle Bluetooth stack.

Making first contact

After some learning and experimentation with Bluetooth, we figured out the recipe for connecting from a Kindle—set up as a GATT Client—to the GATT Server running on the Pi Pico. My Pico Server has a Characteristic with the UUID ff12, that supports read, write, and notify. This can be used to read and toggle the built-in LED by writing ON or OFF.

Here’s a quick look into what reading and writing that Characteristic through the ace_bt_cli utility looks like:

$ ace_bt_cli
ACEBTCLI BT Client :: start
p_data (size:27) = 1B 00 00 00 00 00 00 00 00 00 00 61 63 65 5F 62
                   74 5F 63 6C 69 00 00 00 00 00 00
ACEBTCLI BT Client :: opened session with 0x18570

# Registration steps are necessary, more on that later
>: ble regble
ACEBTCLI CLI callback : aceBtCli_bleRegCallback() status: 0
ACEBTCLI Register BLE Client Success

>: ble regGattc
ACEBTCLI Register Gatt Client Success

# Actual connection
>: ble connect CF:04:36:8E:BB:FC 2 10 true
ACEBTCLI str: CF04368EBBFC
ACEBTCLI aceBtCli_aclStateChangedCallback() status:0 addr:CF:04:36:8E:BB:FC state:0, transport:0, reason:0
ACEBTCLI CLI callback : aceBtCli_bleConnStateChangedCallback()
ACEBTCLI state 0 status 0 connHandle 0xb5f067b0 addr fc
ACEBTCLI GATT Client Connect Success
# Format is <bdaddr> <conn_param> <conn_priority> <auto_connect>
# These values are not explained, but rather had to be reverse engineered

# Discovery and retrieval of Services
>: ble getdb 0xb5f067b0
ACEBTCLI CLI callback : aceBtCli_bleGattcGetDbCallback()
ACEBTCLI connHandle 0xb5f067b0 no_svc 4
ACEBTCLI Gatt Database index :0 0xb5f00808
ACEBTCLI Service 0 uuid 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  serviceType 0
ACEBTCLI        Gatt Characteristics 0 uuid 2a 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI Gatt Database index :1 0xb5f0083c
ACEBTCLI Service 0 uuid 18 0f 00 00 00 00 00 00 00 00 00 00 00 00 00 00  serviceType 0
ACEBTCLI        Gatt Characteristics with Notifications 0 uuid 2a 19 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI                Descriptor UUID 29 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI Gatt Database index :2 0xb5f00870
ACEBTCLI Service 0 uuid 18 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00  serviceType 0
ACEBTCLI        Gatt Characteristics 0 uuid 2b 2a 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI Gatt Database index :3 0xb5f008a4
ACEBTCLI Service 0 uuid ff 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00  serviceType 0
ACEBTCLI        Gatt Characteristics 0 uuid ff 11 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI                Descriptor 1 UUID 29 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI                Descriptor 2 UUID 29 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI        Gatt Characteristics 1 uuid ff 12 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI                Descriptor 1 UUID 29 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI                Descriptor 2 UUID 29 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI Discover Gatt Service Database Failure

# Read Characteristic
>: ble readChars ff120000000000000000000000000000
ACEBTCLI CLI callback : aceBtCli_bleGattcReadCharsCallback() status: 0
ACEBTCLI connHandle 0xb5f067b0
ACEBTCLI UUID:: ff 12 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ACEBTCLI 4f
ACEBTCLI 46
ACEBTCLI 46
ACEBTCLI Read Characteristic Success
# Response was `4f 46 46` which is `OFF` in ASCII

# Write value ON, again in ASCII
>: ble writeChars 1 ff120000000000000000000000000000 4f4e
ACEBTCLI CLI callback : aceBtCli_bleGattcWriteCharsCallback()
ACEBTCLI connHandle 0xb5f067b0 gatt format 255
ACEBTCLI Write Characteristic Success
# Format is <response> <uuid> <value>
# <response> is a bool of whether response is required or not

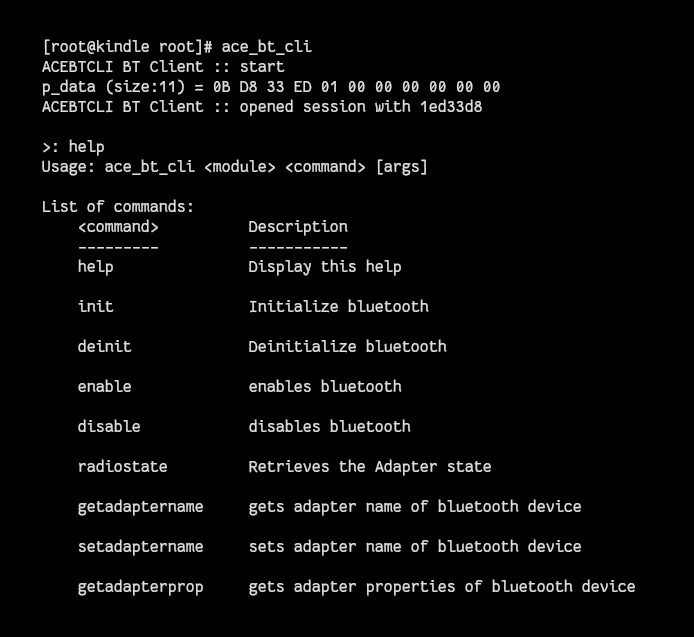

There are more commands inside the ace_bt_cli utility, which we can get by running the help command. However, these will depend on the firmware version. For example, none of the GATT Client BLE operations were implemented before version 5.17. We will go more into detail later, but for now, this is a good jumping-off point for the next stage of the investigation—looking into the used libraries.

Discovering the ace_bt library

Clearly the functionality exists at the kernel and firmware level, so then it’s just a matter of finding where this code is implemented. Using ldd or objdump we can determine which C libraries (.so files) are loaded. This leads us to the libace_bt.so library.

$ which ace_bt_cli
/usr/bin/ace_bt_cli

$ ldd /usr/bin/ace_bt_cli
  linux-vdso.so.1 (0xbec17000)
  /usr/lib/libenvload.so (0xb6ee3000)
  liblipc.so.1 => /usr/lib/liblipc.so.1 (0xb6eb5000)
  liblab126utils.so.1 => /usr/lib/liblab126utils.so.1 (0xb6ea9000)
  libstackdump.so.1 => /usr/lib/libstackdump.so.1 (0xb6e9f000)
  libdl.so.2 => /lib/libdl.so.2 (0xb6e94000)
  libace_bt_cli.so => /usr/lib/libace_bt_cli.so (0xb6e7a000)
  libace_log.so => /usr/lib/libace_log.so (0xb6e70000)
  libace_osal.so => /usr/lib/libace_osal.so (0xb6e67000)
  librt.so.1 => /lib/librt.so.1 (0xb6e58000)
  libc.so.6 => /lib/libc.so.6 (0xb6d25000)
  libgcc_s.so.1 => /lib/libgcc_s.so.1 (0xb6d01000)
  libcjson.so => /usr/lib/libcjson.so (0xb6cf2000)
  libdbus-1.so.3 => /usr/lib/libdbus-1.so.3 (0xb6cc1000)
  libpthread.so.0 => /lib/libpthread.so.0 (0xb6ca1000)
  libgthread-2.0.so.0 => /usr/lib/libgthread-2.0.so.0 (0xb6c95000)
  libglib-2.0.so.0 => /usr/lib/libglib-2.0.so.0 (0xb6b9e000)
  libcrypto.so.1.0.0 => /usr/lib/libcrypto.so.1.0.0 (0xb6a42000)
  /lib/ld-linux.so.3 (0xb6eec000)
  libace_bt.so => /usr/lib/libace_bt.so (0xb6a23000)
  libstdc++.so.6 => /usr/lib/libstdc++.so.6 (0xb68e0000)
  libm.so.6 => /lib/libm.so.6 (0xb686c000)
  libacehal_log.so.1 => /usr/lib/libacehal_log.so.1 (0xb6863000)
  libuthash.so => /usr/lib/libuthash.so (0xb685a000)
  libace_utils.so => /usr/lib/libace_utils.so (0xb6851000)
  libace_aipc.so => /usr/lib/libace_aipc.so (0xb6837000)
  libllog.so.1 => /usr/lib/libllog.so.1 (0xb682b000)
  libmetrics.so.1 => /usr/lib/libmetrics.so.1 (0xb681d000)
  libdynconf.so.1 => /usr/lib/libdynconf.so.1 (0xb6813000)
  libsoup-2.4.so.1 => /usr/lib/libsoup-2.4.so.1 (0xb67ba000)
  libgobject-2.0.so.0 => /usr/lib/libgobject-2.0.so.0 (0xb677a000)
  libappreg.so.1 => /usr/lib/libappreg.so.1 (0xb676d000)
  libsqlite3.so.0 => /usr/lib/libsqlite3.so.0 (0xb66a4000)
  libssl.so.1.0.0 => /usr/lib/libssl.so.1.0.0 (0xb6652000)
  libgio-2.0.so.0 => /usr/lib/libgio-2.0.so.0 (0xb6548000)
  libresolv.so.2 => /lib/libresolv.so.2 (0xb652c000)
  libffi.so.5 => /usr/lib/libffi.so.5 (0xb651e000)
  libgmodule-2.0.so.0 => /usr/lib/libgmodule-2.0.so.0 (0xb6513000)
  libxml2.so.2 => /usr/lib/libxml2.so.2 (0xb63f4000)
  libz.so.1 => /usr/lib/libz.so.1 (0xb63db000)

There are lots of libraries here, but if you were looking for Bluetooth-related things, you would naturally focus on anything containing bluetooth or its common abbreviation bt in the name. The relevant libraries here are therefore libace_bt_cli.so and libace_bt.so. As you might have guessed, ace_bt_cli includes ace_bt.

$ ldd /usr/lib/libace_bt_cli.so
  libace_bt.so => /usr/lib/libace_bt.so (0xb6e85000)
## Other lines removed for brevity ##

And as you’d expect, all these utilities and libraries are stripped.

$ file /usr/bin/ace_bt_cli /usr/lib/libace_bt_cli.so /usr/lib/libace_bt.so

/usr/bin/ace_bt_cli:       ELF 32-bit LSB executable, ARM, EABI5 version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux.so.3, for GNU/Linux 2.6.32, stripped

/usr/lib/libace_bt_cli.so: ELF 32-bit LSB shared object, ARM, EABI5 version 1 (SYSV), dynamically linked, stripped

/usr/lib/libace_bt.so:     ELF 32-bit LSB shared object, ARM, EABI5 version 1 (SYSV), dynamically linked, stripped

ARM Soft Float vs Hard Float

The previous file log that I shared was from a PW5 running firmware version 5.16.2.1.1. For comparison, here is the same command executed on the files from a Kindle Colorsoft running 5.18.0.1.0.1—yes, version numbers are often this convoluted.

$ file /usr/bin/ace_bt_cli /usr/lib/libace_bt_cli.so /usr/lib/libace_bt.so

/usr/bin/ace_bt_cli:       ELF 32-bit LSB executable, ARM, EABI5 version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux-armhf.so.3, for GNU/Linux 2.6.32, stripped

/usr/lib/libace_bt_cli.so: ELF 32-bit LSB shared object, ARM, EABI5 version 1 (SYSV), dynamically linked, stripped

/usr/lib/libace_bt.so:     ELF 32-bit LSB shared object, ARM, EABI5 version 1 (SYSV), dynamically linked, stripped

Did you notice the different interpreters? It turns out that, from version 5.16.3, Lab126 switched all Kindles that were still receiving updates at that time to ARMHF—ARM Hard Float. All previous firmware versions, even on relatively new devices like my 2022 Kindle Paperwhite 11th-generation (PW5), run ARM Soft Float, also known as ARMEL or SF in the Kindle modding community.

This effectively means that we have two targets. Binaries can sometimes be made to work by simply patching the interpreter—keyword being sometimes. For libraries, this is not an option.

Underlying Bluetooth stack

If you look around in the system, you won’t find any of the usual BlueZ files or directories. There are no BlueZ binaries, such as bluetoothctl or bluetoothd, and there is no /etc/bluetooth directory for the configuration files.

However, if you look in the /usr/lib directory, you will find libbluetooth.so which is produced by Bluedroid builds. Looking into the strings confirms this.

$ strings libbluetooth.so | grep -i bluedroid
Bluedroid HAL needs to be init with test_mode set to 1.
/data/misc/bluedroid/LOCAL/b.key
/data/misc/bluedroid/LOCAL/a.key
/data/misc/bluedroid/.a2dp_ctrl
/data/misc/bluedroid/.a2dp_data

You can also download the Bluedroid source code and compare the symbol table of the libbluetooth.so file against the Bluedroid codebase, which shows plenty of matches.

Bear in mind that this is a relatively recent development. Kindles from the 8th to 10th-generation (2016-2019) used NXP chips, and don’t have this Bluedroid library. From the 11th-generation onwards, Lab126 switched to MediaTek chips, which appears to be when they started using the Bluedroid stack. Some of these devices—like the Kindle Oasis 10th-generation (KOA3)—are still receiving updates to this day. I don’t have any of these devices, but you can download Kindle firmware files and unpack them using KindleTool.

# Downloading Kindle Oasis 10th-gen (KOA3) 5.18.2 here
$ wget https://s3.amazonaws.com/firmwaredownloads/update_kindle_all_new_oasis_v2_5.18.2.bin

# Unpack
$ path/to/kindletool extract update_kindle_all_new_oasis_v2_5.18.2.bin unpack_dir/.

# Here is what you will see
$ ls unpack_dir/
data.stgz      rootfs.img.gz.sig
data.stgz.sig  update-payload.dat
imx7d_zelda/   update-payload.dat.sig
rootfs.img.gz

# rootfs is our interest since that will contain all the system files
$ cd unpack_dir && gunzip rootfs.img.gz

# Once we have our unpacked rootfs.img we can just mount it
$ mkdir tempmnt && sudo mount -o loop rootfs.img tempmnt/

$ ls tempmnt/
app/     keys/        pdata/   tmp@
bin/     lib/         proc/    tts/
chroot@  lost+found/  sbin/    usr/
dev/     mnt/         sys/     var/
etc/     opt/         system/

From a quick search, I found that /usr/lib/libbsa.so contains plenty of BLE symbols. I have no idea what this stack is, but online searches indicate that it is either a Broadcom, or a Cypress proprietary stack. There is no ace_bt_cli binary, but a /usr/bin/btui binary—not available in my newer devices—shows a similar, albeit more limited, help interface. Perhaps this was a precursor to the later ace_bt_cli utility in the 11th-generation and later.

That being said, the rest of the article will focus on the newer devices, as I lack any devices from the 8th to 10th-generation. Investigating those is therefore out of scope for me. However, if you have one of those devices, I hope you find the rest of the article useful for your own investigations!

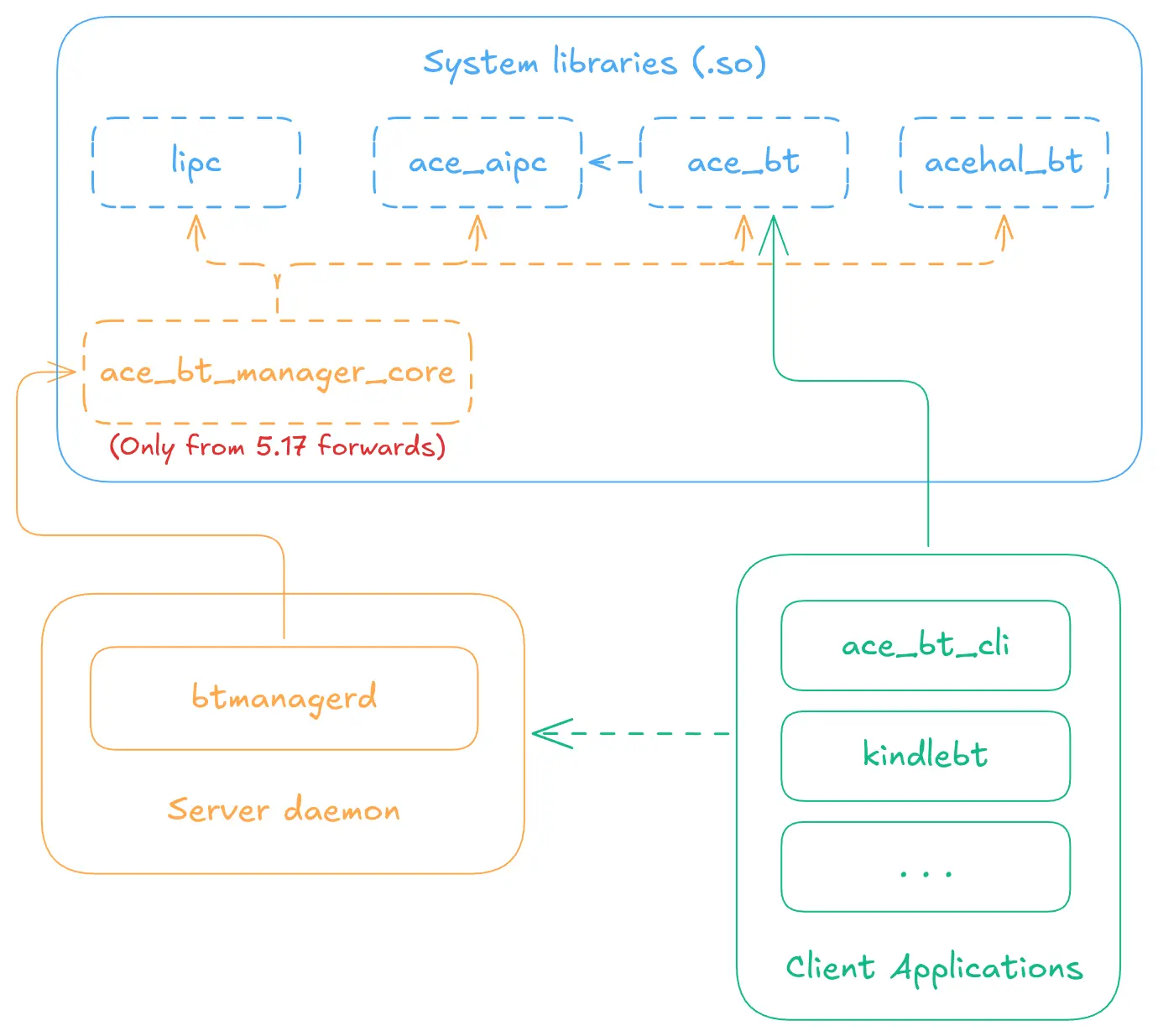

Kindle Bluetooth stack architecture

The Kindle Bluetooth stack appears to be in a state of ongoing development, meaning some of the things I mention here will not apply to older firmware versions. For this example, I will showcase the stack from version 5.17, and we can discuss some of the differences later.

I would quickly mention that major.minor.0 firmwares are limited to release Kindles. Even if you know this firmware version exists for your device, you won’t be able to download it from the Kindle firmware files page, no matter if you manually change the URL to the .0 version. I am unsure why this is the case, but it means that I will investigate changes on the .1 releases and then assume that the change was initially implemented on the .0 release.

The Kindles use an old version of Upstart (0.6.6) as the init system, with lots of custom jobs. The relevant one for us, /etc/upstart/btmanagerd.conf, begins soon after system startup. The main interesting jobs that run before btmanagerd are the filesystems* ones, setting up /var/local and the /mnt/us userstore, on which btmanagerd indirectly depends. That being said, I will leave an analysis of services running on a Kindle out of this article.

Once btmanagerd is up and running, we can use netstat to inspect its open sockets.

$ netstat -ap | grep btmanagerd
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address              Foreign Address         State       PID/Program name
tcp        0      0 localhost.localdomain:8873 0.0.0.0:*               LISTEN      2920/btmanagerd

Active UNIX domain sockets (servers and established)
Proto RefCnt Flags       Type       State          I-Node PID/Program name   Path
unix  2      [ ACC ]     STREAM     LISTENING      17523 2920/btmanagerd     @/data/misc/bluedroid/.a2dp_ctrl
unix  2      [ ACC ]     SEQPACKET  LISTENING      17524 2920/btmanagerd     /dev/aipc/0/ss
unix  3      [ ]         STREAM     CONNECTED      17521 2920/btmanagerd
unix  3      [ ]         STREAM     CONNECTED      17455 2920/btmanagerd
unix  3      [ ]         STREAM     CONNECTED      19470 2920/btmanagerd
unix  3      [ ]         SEQPACKET  CONNECTED      15988 2920/btmanagerd     /dev/aipc/0/ss
unix  3      [ ]         STREAM     CONNECTED      17522 2920/btmanagerd
unix  3      [ ]         STREAM     CONNECTED      17453 2920/btmanagerd
unix  3      [ ]         STREAM     CONNECTED      19471 2920/btmanagerd

I have not investigated what the TCP socket is for yet, and it seems to be unused by the Bluetooth clients built with ace_bt. Nonetheless, the interest lies in the /dev/aipc/0/ss socket. This is created by the ace_aipc library, which btmanagerd indirectly uses. Any client code that uses ace_bt will also indirectly use ace_aipc and connect to the same socket. The number appears to be deterministic, and Bluetooth will always use /dev/aipc/0/ss.

Knowing this, you could inject yourself in the middle and inspect the data being sent both ways using different tools such as netstat, socat, or even strace.

$ strace -f -e trace=network ./kindlebt_test
Hello World from Kindle!
Is BLE enabled: 1
socket(PF_LOCAL, SOCK_DGRAM|SOCK_CLOEXEC, 0) = 3
connect(3, {sa_family=AF_LOCAL, sun_path="/dev/log"}, 110) = -1 EPROTOTYPE (Protocol wrong type for socket)
socket(PF_LOCAL, SOCK_STREAM|SOCK_CLOEXEC, 0) = 3
connect(3, {sa_family=AF_LOCAL, sun_path="/dev/log"}, 110) = 0
send(3, "<13>Nov  7 13:07:52 kindlebt_tes"..., 79, MSG_NOSIGNAL) = 79
send(3, "<13>Nov  7 13:07:52 kindlebt_tes"..., 111, MSG_NOSIGNAL) = 111
Process 27721 attached
[pid 27720] socket(PF_LOCAL, SOCK_SEQPACKET|SOCK_NONBLOCK, 0) = 4
[pid 27721] send(3, "<13>Nov  7 13:07:52 kindlebt_tes"..., 153, MSG_NOSIGNAL <unfinished ...>
[pid 27720] connect(4, {sa_family=AF_LOCAL, sun_path="/dev/aipc/0/ss"}, 110 <unfinished ...>
[pid 27721] <... send resumed> )        = 153
[pid 27720] <... connect resumed> )     = 0
[pid 27720] setsockopt(4, SOL_SOCKET, SO_SNDBUF, [143232], 4) = 0
[pid 27720] setsockopt(4, SOL_SOCKET, SO_RCVBUF, [143232], 4) = 0
Process 27722 attached
[pid 27722] send(3, "<13>Nov  7 13:07:52 kindlebt_tes"..., 134, MSG_NOSIGNAL) = 134
[pid 27720] send(3, "<13>Nov  7 13:07:52 kindlebt_tes"..., 110, MSG_NOSIGNAL) = 110
[pid 27720] sendmsg(4, {msg_name(0)=NULL, msg_iov(2)=[{"Hl\0\0kindlebt_test\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0"..., 144}, {"Hl\0\0\353\3\0\0\353\3\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0", 32}], msg_controllen=0, msg_flags=0}, MSG_NOSIGNAL) = 176
[pid 27722] recvmsg(4, {msg_name(0)=NULL, msg_iov(2)=[{"Hl\0\0btmanagerd\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0"..., 144}, {"Hl\0\0\353\3\0\0\353\3\0\0000\0\2725M\377\212K}rU\2\23l\16\200\254\304\0\0", 16384}], msg_controllen=0, msg_flags=0}, 0) = 176
[pid 27722] recvmsg(4, 0xb5efeae4, 0)   = -1 EAGAIN (Resource temporarily unavailable)
[pid 27720] send(3, "<13>Nov  7 13:07:52 kindlebt_tes"..., 149, MSG_NOSIGNAL) = 149
[pid 27720] send(3, "<13>Nov  7 13:07:52 kindlebt_tes"..., 114, MSG_NOSIGNAL) = 114
Process 27723 attached
[pid 27720] send(3, "<13>Nov  7 13:07:52 kindlebt_tes"..., 134, MSG_NOSIGNAL) = 134
p_data (size:27) = 1B 00 00 00 00 00 00 00 00 00 00 6B 69 6E 64 6C
                   65 62 74 5F 74 65 73 74 00 00 00
[pid 27720] sendmsg(4, {msg_name(0)=NULL, msg_iov(2)=[{"Hl\0\0kindlebt_test\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0"..., 144}, {"\33\0\0\0\0\0\0\0\0\0\0kindlebt_test\0\0\0", 27}], msg_controllen=0, msg_flags=0}, MSG_NOSIGNAL) = 171
[pid 27722] recvmsg(4, {msg_name(0)=NULL, msg_iov(2)=[{"h\v\0\0btmanagerd\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0"..., 144}, {"\33L\231\356\266\0\0\0\0\0\0kindlebt_test\0\0\0", 16384}], msg_controllen=0, msg_flags=0}, 0) = 171
[pid 27722] recvmsg(4, 0xb5efeae4, 0)   = -1 EAGAIN (Resource temporarily unavailable)
[pid 27720] send(3, "<13>Nov  7 13:07:52 kindlebt_tes"..., 134, MSG_NOSIGNAL) = 134
Opened session status 0, session 0x1a548 (u32 107848)

Note that strace is not included on Kindles, but you can download an older armel or armhf version compiled by Debian and use it on your Kindle after unpacking. You might find this technique useful for bringing other utilities to Kindles:

# Unpack deb
$ ar x strace_4.9-2_armhf.deb
# Unpack compiled binaries
$ tar -xaf data.tar.xz
# Our compiled binary
$ file usr/bin/strace
usr/bin/strace: ELF 32-bit LSB shared object, ARM, EABI5 version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux-armhf.so.3, for GNU/Linux 2.6.32, BuildID[sha1]=28e3ae6bc1a0a32aa6cce25696fcc4a3eef38961, stripped

So let’s recap. We have a server component—btmanagerd—and different clients that communicate with the server daemon via the Unix Domain socket /dev/aipc/0/ss to request Bluetooth operations. In turn, the server will use lower-level Bluetooth libraries such as libbluetooth.so from the Bluedroid stack.

Writing my own Bluetooth stack

With future plans to use the existing Bluetooth infrastructure for my remote page-turning aspirations, I decided to write my own Bluetooth stack. This is firstly because it provides a documented and open interface, but also because it allows me to simplify and abstract some of the more complex operations. It will also provide a single API target that can handle different versions of the Kindle Bluetooth stack transparently.

The result of this work has been KindleBT, which currently supports all HF firmwares for all 11th-generation and above devices. While the entire Bluetooth API has not been implemented—I have mostly focused on the GATT Client APIs—the rest of the APIs should require significantly less work to support.

Non-exhaustive—but hopefully improving with time— documentation is also available. It includes limitations, building instructions, and an always-up-to-date reference to the KindleBT public API. The documentation also includes an example of usage.

Bluetooth is event-driven

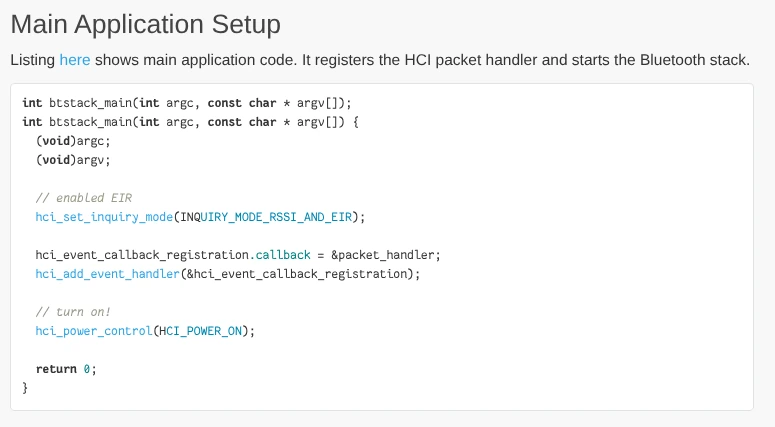

Regardless of the Bluetooth stack used, Bluetooth chips are inherently asynchronous. You request a read or write operation from the stack, the stack acknowledges the request, and at some future point you hopefully receive the result of the operation. If you look at other Bluetooth stacks, you’ll find most of them offer an asynchronous API where you have to register callbacks to wait for events.

Even if they are wrappers over Bluedroid, both the btmanagerd server daemon and the ace_bt library expose this particularity. Here is an edited excerpt from the KindleBT example reading a Characteristic. This is not working code, nor is there any need to understand exactly what the KindleBT API looks like. I simply wish to showcase the asynchronous nature of the API.

void bleGattcReadCharsCallback(
    bleConnHandle conn_handle, bleGattCharacteristicsValue_t chars_value, status_t status
) {
    printf("Callback %s(): status %d conn_handle %p\n", __func__, status, conn_handle);
}

static bleGattClientCallbacks_t gatt_app_callbacks = {
    .size = sizeof(bleGattClientCallbacks_t),
    .on_ble_gattc_read_characteristics_cb = bleGattcReadCharsCallback,
};

static sessionHandle bt_session = NULL;

int main() {
    openSession(ACEBT_SESSION_TYPE_DUAL_MODE, &bt_session);
    bleRegisterGattClient(bt_session, &gatt_app_callbacks);
    bleReadCharacteristic(bt_session, conn_handle, charac->value);

    // bleGattcReadCharsCallback would be called afterwards
}

The way this works is that the client will register for these callbacks in btmanagerd through the previously introduced IPC socket, using ace_bt. The callbacks struct—here, bleGattClientCallbacks_t—will be scanned to create a mask of the assigned callbacks. This will then be sent over the socket to btmanagerd, which will forward events back to us.

From reversed KindleBT code doing this registration:

mask = create_client_callback_mask(callbacks);

uint32_t temp_aipc = (aipc_handle.server_id << 16) + aipc_handle.callback_server_id;
aceBt_serializeGattcRegisterData(&manager_callbacks, temp_aipc, mask, app_id);
log_debug("[%s()]: Register GATT Client session handle %p", __func__, session_handle);

status = registerBTClientData(session_handle, CALLBACK_INDEX_BLE_GATT_CLIENT, (void*)callbacks);
log_debug("[%s()]: registerBTClientData step. Result: %d", __func__, status);
if (status != ACEBT_STATUS_SUCCESS) return status;

status = registerBTEvtHandler(
    session_handle, pre5170_gattc_cb_handler, ACE_BT_CALLBACK_GATTC_INIT,
    ACE_BT_CALLBACK_GATTC_MAX
);
log_debug("[%s()]: registerBTEvtHandler step. Result: %d", __func__, status);
if (status != ACEBT_STATUS_SUCCESS) return status;

status = aipc_invoke_sync_call(
    ACE_BT_BLE_REGISTER_GATT_CLIENT_API, (void*)&manager_callbacks, manager_callbacks.size
);

The ace_bt library is closely linked to btmanagerd, as they both appear to require simultaneous development. When a new callback type is introduced in ace_bt, it also requires implementation in btmanagerd to receive the event from the lower-level stack, translate it, and forward it to the ace_bt client.

This is the reason why I haven’t implemented support for SF devices in the current KindleBT release: the btmanagerd daemon doesn’t support the callback for the BLE connection event, nor many other GATT Client events.

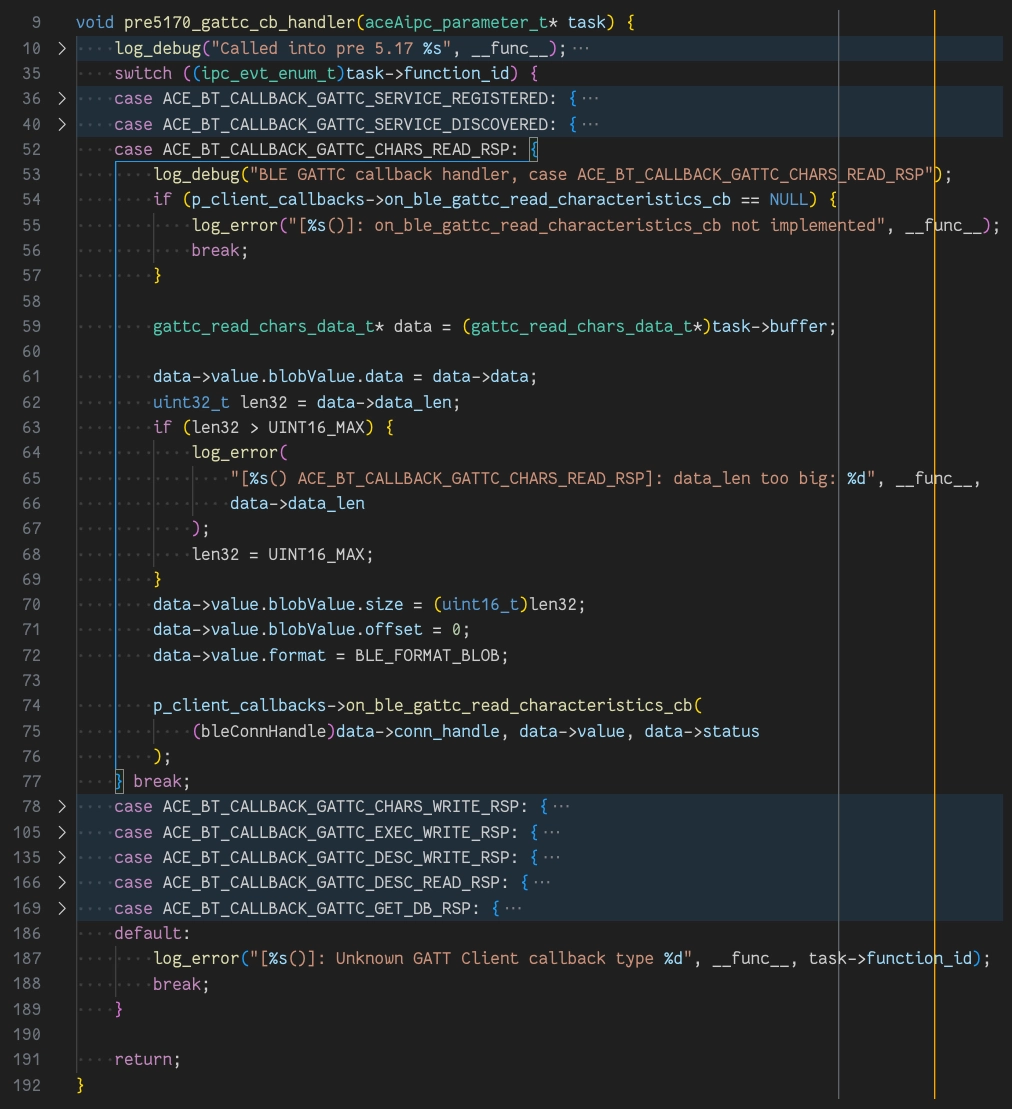

In the previous figure you can see the GATT Client callback handler. This was reversed from the ace_bt library in firmware version 5.17, and backported into KindleBT so that it could work on devices with firmware version 5.16, in which ace_bt doesn’t yet implement this functionality.

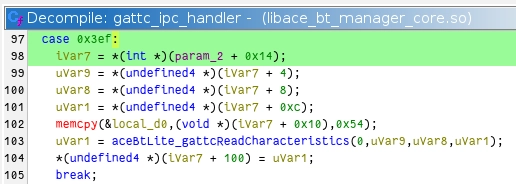

Returning to the previous point, btmanagerd receives the raw Bluetooth packet events, translates them into internal data structures, and then sends the structures over the IPC socket. KindleBT then receives these structures, determines the event type—in this case, the GATT Client Read Characteristic event—and, if the application has registered for that event, executes the callback.

Dealing with breaking API changes

One of the earlier issues was identifying the ABI incompatibilities. It turns out that ace_bt is still under active development, so there would be breaking changes in the ABI from version to version, such as the removal of certain functions, changes to the signature of others, and the introduction of new functions.

# >=5.17 versions have all the new GATT Client APIs
$ nm -gD scribe1_5.17.3/libace_bt.so | grep "aceBT_bleReadCharacteristics"
0001262c T aceBT_bleReadCharacteristics

# While 5.16 versions have none of the GATT Client APIs
$ nm -gD scribe1_5.16.5/libace_bt.so | grep "aceBT_bleReadCharacteristics"

# Likewise, pre 5.16.3 versions, so SF, have none of the GATT Client APIs
$ nm -gD kpw5_5.16.2.1.1/libace_bt.so | grep "aceBT_bleReadCharacteristics"

# There are some other breaking API changes too:
$ nm -gD scribe1_5.17.3/libace_bt.so | grep -e "getSessionForTask" -e "getSessionForCallback"
00005890 T getSessionForTask

$ nm -gD scribe1_5.16.5/libace_bt.so | grep -e "getSessionForTask" -e "getSessionForCallback"
00005198 T getSessionForTask

$ nm -gD kpw5_5.16.2.1.1/libace_bt.so | grep -e "getSessionForTask" -e "getSessionForCallback"
000051a0 T getSessionForCallback

As I didn’t want to have multiple build targets based on preprocessor directives, I had to implement runtime ABI detection. For example, here an excerpt from the KindleBT codebase to detect whether we have getSessionForCallback or getSessionForTask and provide a common API:

#define _GNU_SOURCE

#include <kindlebt/compat_ace_shims.h>

#include <dlfcn.h>
#include <stdbool.h>

#include "log.h"

typedef sessionHandle (*getSessionForCallback_fn_t)(uint16_t);
typedef sessionHandle (*getSessionForTask_fn_t)(aceAipc_parameter_t*);

sessionHandle getSessionFromHandler(aceAipc_parameter_t* task) {
    static getSessionForCallback_fn_t old_api = NULL;
    static getSessionForTask_fn_t new_api = NULL;
    static bool initialized = false;

    if (!initialized) {
        new_api = (getSessionForTask_fn_t)dlsym(RTLD_DEFAULT, "getSessionForTask");
        if (!new_api) {
            old_api = (getSessionForCallback_fn_t)dlsym(RTLD_DEFAULT, "getSessionForCallback");
        }
        initialized = true;
    }

    if (new_api) {
        return new_api(task);
    } else if (old_api) {
        return old_api(task->callback_id);
    } else {
        // Nothing matched. We shouldn't reach this
        log_error("[%s()]: couldn't match any of the expected getSessionFor* symbols", __func__);
        return (sessionHandle)-1;
    }
}

The getSessionFor* functions are used in the callback handler and return the same data with a mostly similar interface, so here we just needed to detect and call the correct symbol at runtime.

Doing it this way means I can avoid multiple builds; it also means applications don’t need to worry about downloading the correct build or figuring out what is the ABI of their included ace_bt library. They can simply download the one KindleBT build for their architecture, and KindleBT will resolve the different ABI versions and use the correct symbols.

However, some of the newer APIs, such as aceBT_bleReadCharacteristics, do not have an older version. That meant that for these APIs, I had to reverse engineer their implementation from the newer ace_bt versions, and reimplement them so these operations would still work on Kindles with older firmwares. Here is an example of the reversed aceBT_bleReadCharacteristics function reimplemented in KindleBT:

status_t pre5170_bleReadCharacteristic(
    sessionHandle session_handle, bleConnHandle conn_handle,
    bleGattCharacteristicsValue_t chars_value
) {
    log_debug("Called into pre 5.17 %s", __func__);

    status_t status;
    aipcHandles_t handle;

    status = getSessionInfo(session_handle, &handle);
    if (status != ACE_STATUS_OK) {
        log_error("[%s()]: Couldn't get session info. Result: %d", __func__, status);
        return ACE_STATUS_BAD_PARAM;
    }

    acebt_gattc_read_chars_req_data_t data;
    serialize_gattc_read_chars_req(&data, (uint32_t)conn_handle, chars_value);
    log_debug("[%s()]: Serialize request, status: %d", __func__, data.status);

    status = aipc_invoke_sync_call(ACE_BT_BLE_GATT_CLIENT_READ_CHARS_API, &data, data.size);
    if (status != ACE_STATUS_OK) {
        log_error("[%s()]: Failed to send AIPC call. Status: %d", __func__, status);
    }
    return status;
}

Then we just need another shim to detect whether the new symbol is available, and use it if so; otherwise, we should fall back on our reversed implementation.

typedef status_t (*aceBT_bleReadCharacteristics_fn_t)(
    sessionHandle, bleConnHandle, bleGattCharacteristicsValue_t
);

status_t shim_bleReadCharacteristic(
    sessionHandle session_handle, bleConnHandle conn_handle,
    bleGattCharacteristicsValue_t chars_value
) {
    static aceBT_bleReadCharacteristics_fn_t new_api = NULL;

#ifndef FORCE_OLD_API
    static bool initialized = false;

    if (!initialized) {
        new_api =
            (aceBT_bleReadCharacteristics_fn_t)dlsym(RTLD_DEFAULT, "aceBT_bleReadCharacteristics");
        initialized = true;
    }
#endif

    if (new_api) {
        return new_api(session_handle, conn_handle, chars_value);
    } else {
        return pre5170_bleReadCharacteristic(session_handle, conn_handle, chars_value);
    }
}

If you are interested in seeing the rest of the reversed GATT Client operations, you can check the KindleBT source code and the compat_ace files.

What’s next

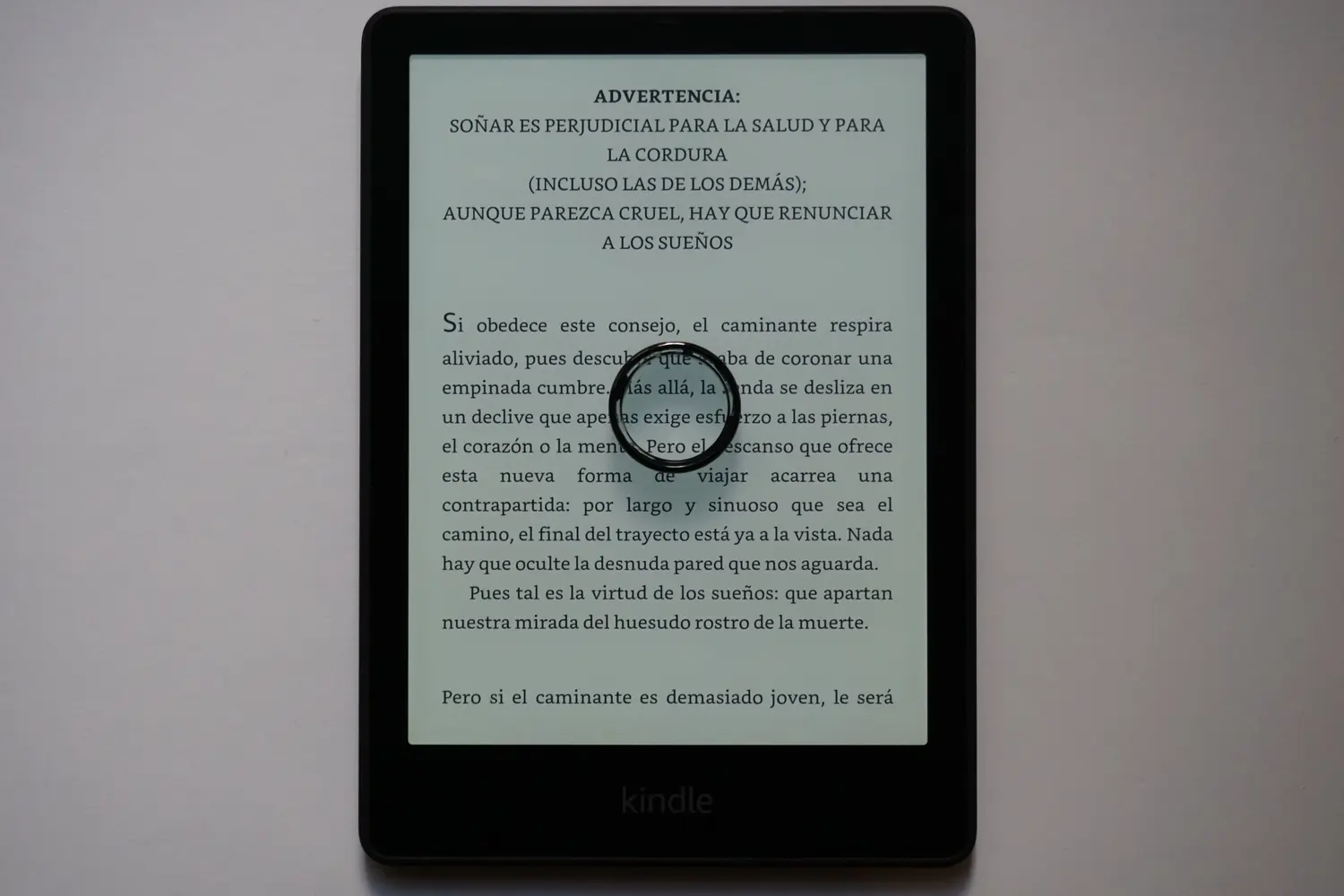

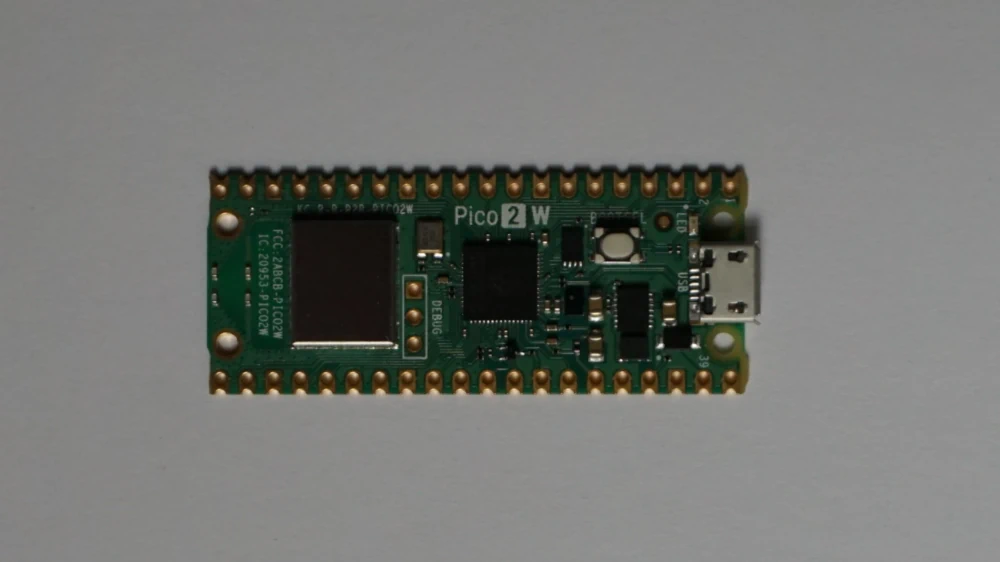

Going forward I will be working on a Go service to allow remote page-turning within the native Kindle reader. It is fairly easy to call and use C code from a Go codebase thanks to CGO. First I would like to support the smart ring shown in the picture at the beginning of the article, but other devices could be implemented through generic Profiles. Support for KOReader would also be nice. And it would be highly amusing to get a Kobo Remote working on a Kindle.

I would also like to return to KindleBT and implement support for the missing API operations. Sadly this becomes increasingly difficult with older firmware versions and devices. The future of the project may be to build directly on top of Bluedroid and have our own server daemon and library components, bypassing btmanagerd and ace_bt entirely.
